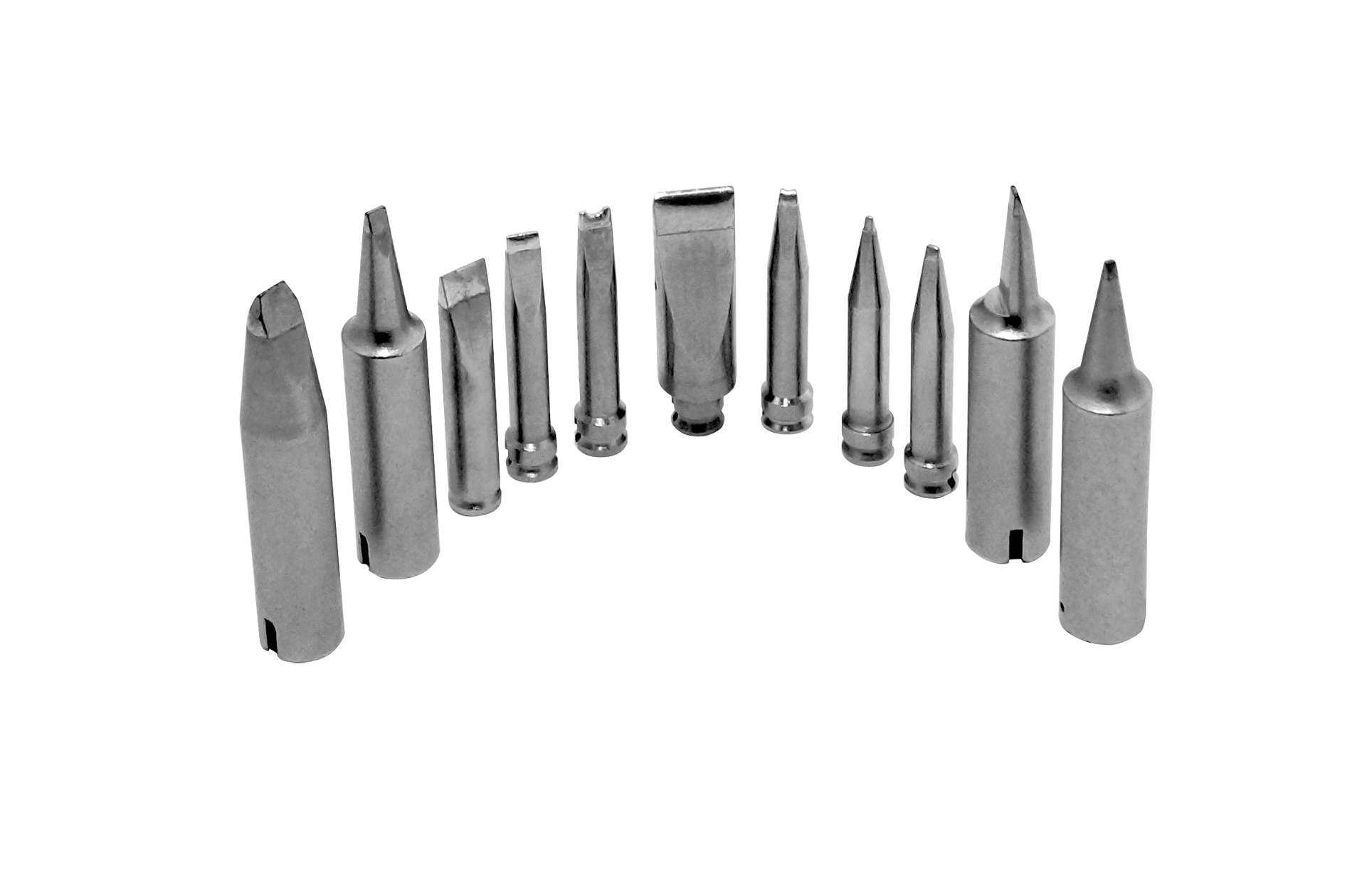

Solder tips

The design of the mta solder tips is the result of 50 years of experience in the soldering domain. This unique design is based on the following key parameters:

  • Easy changeover of the tip: it can be changed within a few seconds and a minimum of steps. The simple and accurate spring lock ensures the replacement of the tips without requiring any further changes to the machine.
  • Long life span: the design ensures a long life span of the tips of up to 80’000 soldering points depending on the application.
  • Accurate temperature control and thermal transfer: the main challenge in an iron soldering device is the quality of the thermal transfer between the heating element and the tip. In addition, the measurement and the control of the temperature must be fast and accurate.

A large range of standard tips for 80W and 150W soldering heads, corresponding to the most common uses, is available. Specific tips can also be offered depending on the customer’s application. mta tips can be used for both lead and lead free soldering.

3 advantages of the mta soldering heating element and tip design

  1. The soldering tips are separate from the heating elements. As the less expensive tips are consumed, you replace them only. The heating elements generally last much longer than solder tips and can last for years.
  2. The tip surrounds the heating element. This design places the thermocouple deep inside the tip for very accurate reading of what is happening at the solder joint. The temperature controller can quickly react to minute changes at the solder joint while the tip still has heat in it.
  3. The tip surrounds the heating unit so all of the heat radiating outward passes directly into the tip.  This design is very efficient and heats the tip quickly.

Solder tips 80W

PDF - Unitechnologies_mta_solder_tips_80W_07.2017.pdf/1.2 mb

Solder tips 150W

PDF - Unitechnologies_mta_solder_tips_150W_02.2019.pdf /1.2 mb
